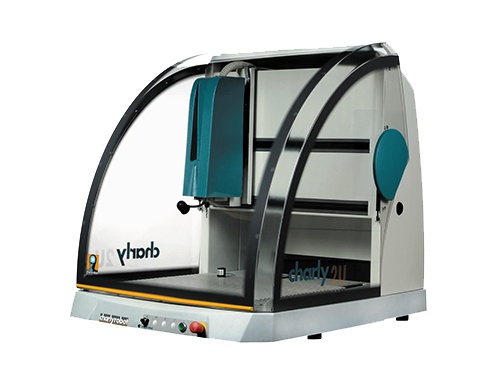

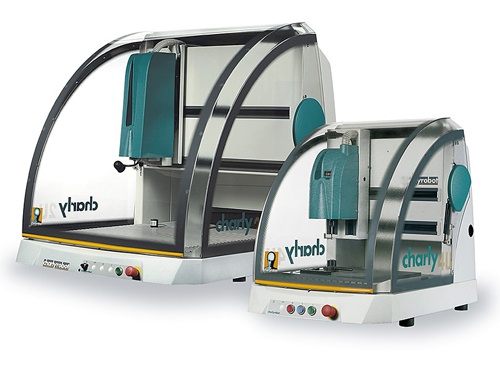

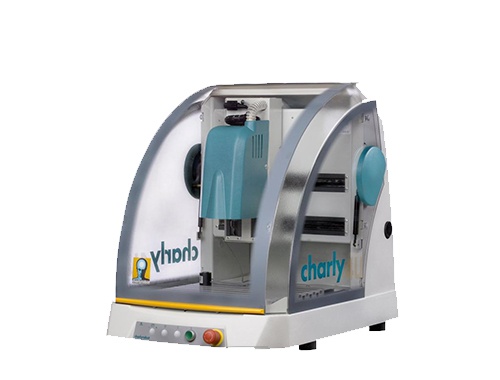

Charly4U - Charly2U

Thanks to their simplicity of use, to their amazingly fine milling results and to their wide surface of milling, the charly4U/2U are a reference in their field with their capacity to mill metals such as aluminium, brass, for a limited budget

Question / Quote

Download PDF

Buy consummables

Back

Description
Technical datas
Fields of activity

The strengths

Working surface 600 x 420 mm.
Z travel 280 mm.
High frequency spindle with integral electronic variable speed drive.
Steel structure.
Double guides by rectified steel prismatic rails with ball recirculation shoe.
Integrated greaser on each axis.
Design.
3 dynamic axes interpolation.

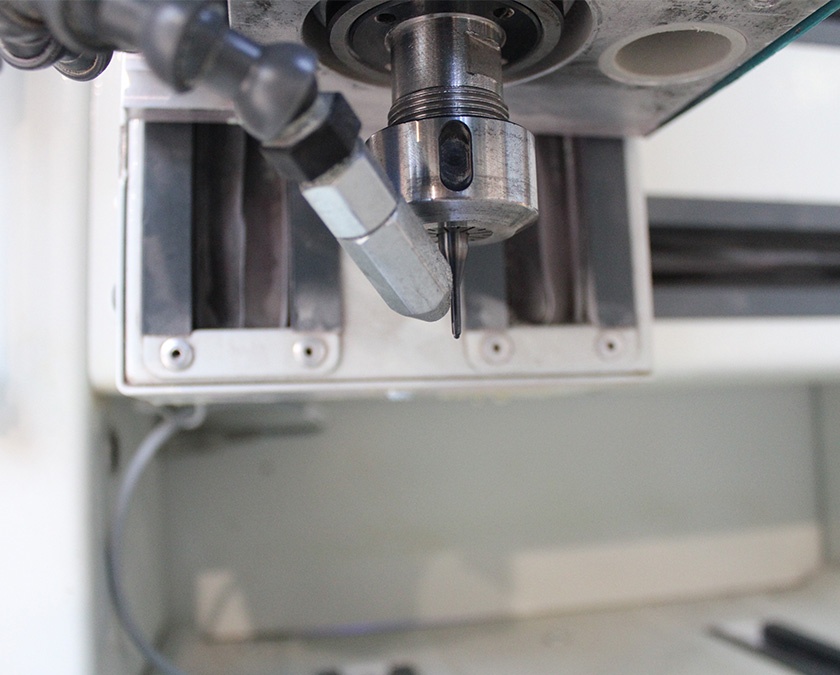

Various options: microlubrication, vacuum table, fourth axis, reinforced protection against dust for carbon machining applications.
Compliant with European safety directives.

CHARACTERISTICS

	Charly2U	Charly4U
X stroke	600	310
Y stroke	420	220
Z stroke	280	160
Table dimensions (X xY)	640 x 680	375 x 320
Architecture	Portique fixe avec table mobile en Y	Portique fixe avec table mobile en Y
Maximum speed	100 mm/s	100 mm/s
Width	985	620
Depth	1300	850
Height	1070	730
Average weight	170	81
